In current commercial spaces and high-end customization projects, design trends are constantly upgrading, and glass applications are shifting from "basic functional materials" to "spatial visual protagonists". Especially for irregular structured glass, higher requirements are placed on processing accuracy, equipment performance, and quality management.
Customer requirements:
The customer requires strict adherence to the design drawings for the 8mm ultra white glass irregular cutting, ensuring millimeter level dimensional accuracy, smooth curves, complete sharp angles, smooth and delicate cuts, no burrs or chipping on the edges, and ensuring that the glass is transparent, pure, and meets strength standards, while maintaining batch consistency.
Solution:

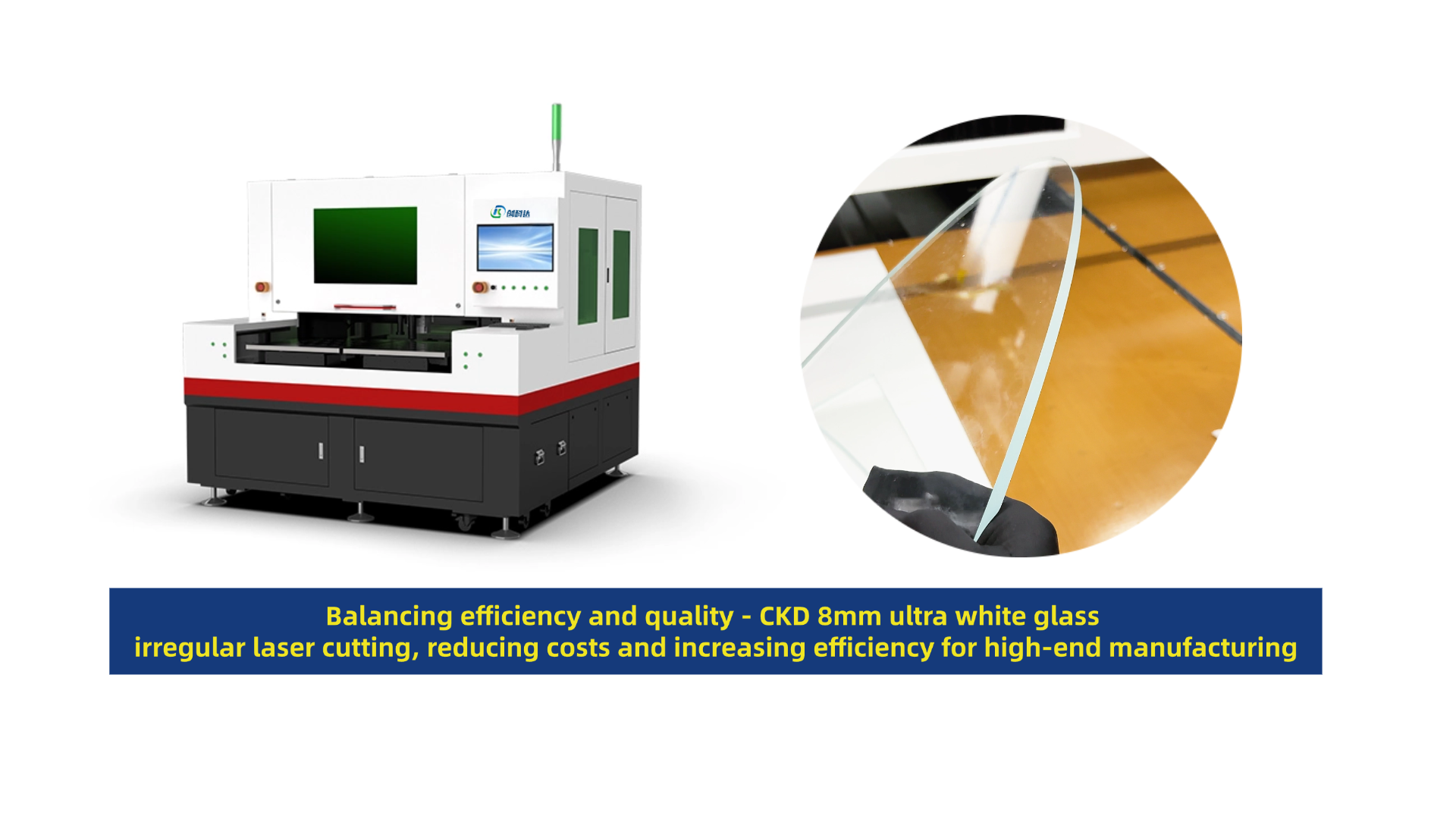

Chuangkeda's "Infrared Picosecond Laser Glass Cutting Integrated Machine" achieves non-contact, low thermal impact, and edge free cutting with a high-energy density picosecond laser source, intelligent visual positioning system, and high-precision motion platform. During the cutting process, laser energy is evenly applied to the inside of the glass, forming a clean cross-section through the principle of cold cracking. The entire cutting edge can be directly assembled and used without the need for secondary polishing. For complex irregular paths, the intelligent control system of the equipment can operate accurately according to CAD drawings, ensuring that every arc and angle matches the design perfectly. The cutting accuracy of the equipment is as high as ± 0.01mm, with excellent verticality of the incision and a broken edge of ≤ 5 μ m; Supports cutting of any shape, whether circular, square, curved, or irregular contours, all can be completed in one go. At the same time, the automated processing platform equipped can achieve synchronous cutting of multiple pieces of glass, significantly improving production efficiency and providing high-quality and high-efficiency solutions for high-end glass precision processing.

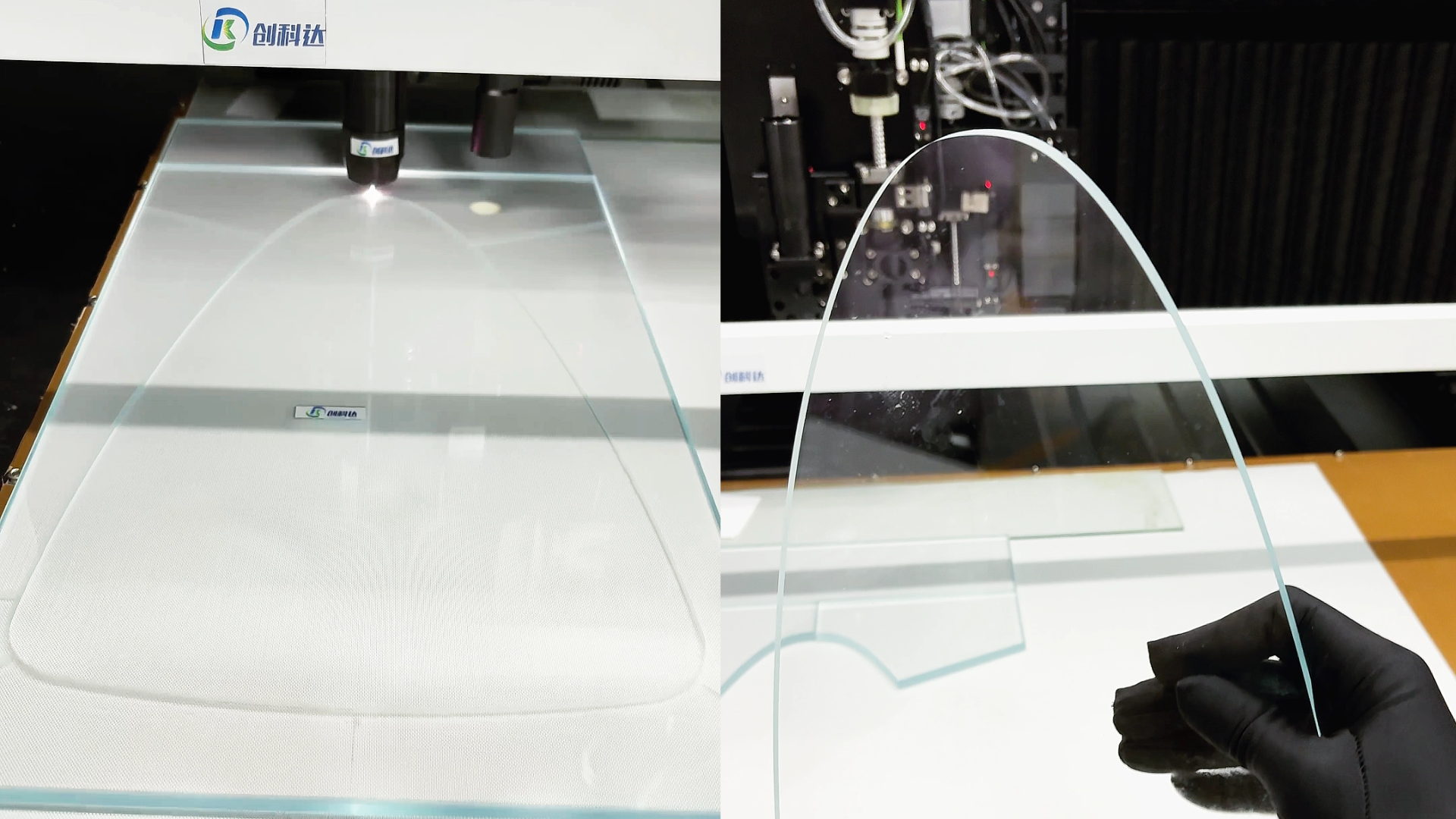

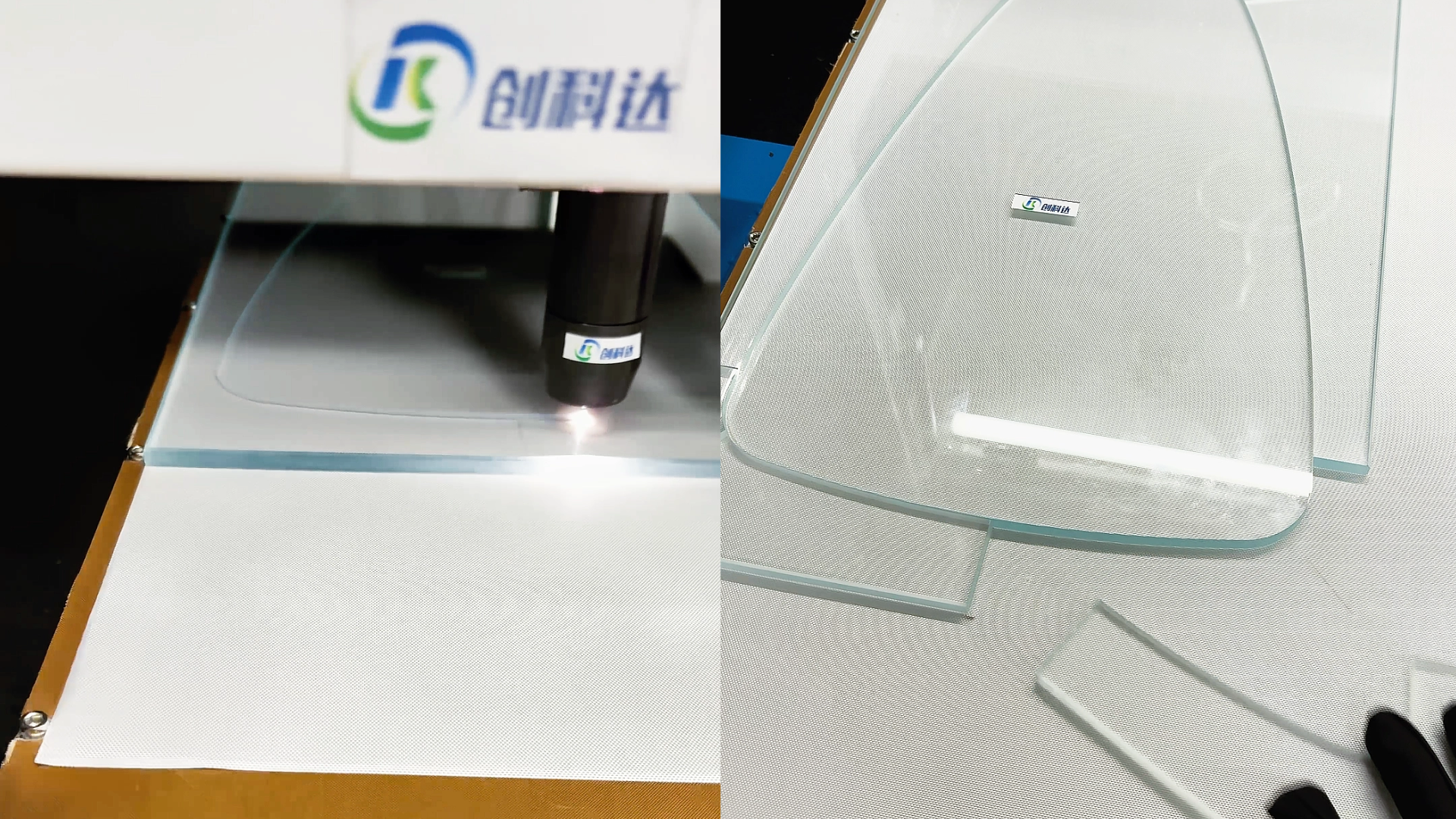

Laser cutting effect display:
• Processing material: 8mm ultra white glass
• Cutting accuracy: ± 0.01 mm
• Edge collapse control: ≤ 5 μ m
• Processing effect: The incision is smooth and flat, the curve transition is natural and smooth, and the finished product can directly enter the subsequent process without the need for secondary grinding or polishing treatment. The yield rate is ≥ 99%
• Processing advantages: Supports cutting of circular, square, and various shaped glass, with high-precision repetitive processing for R-angle, elliptical, and complex contours. Stable mass production and strong dimensional consistency
